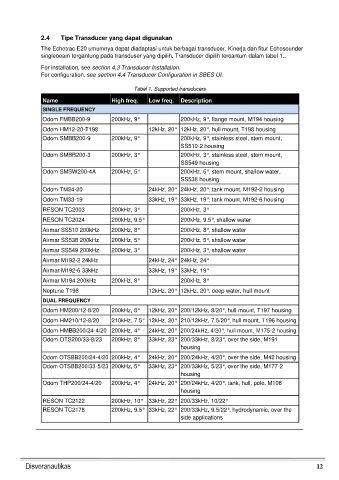

Page 12 - Echotrac E20 SBES

2.4 Tipe Transducer yang dapat digunakan

The Echotrac E20 umumnya dapat diadaptasi untuk berbagai transducer. Kinerja dan fitur Echosounder
singlebeam tergantung pada transduser yang dipilih. Transducer dipilih tercantum dalam tabel 1..

For installation, see section 4.3 Transducer Installation.
For configuration, see section 4.4 Transducer Configuration in SBES UI.

Tabel 1. Supported transducers
Name High freq. Low freq. Description
SINGLE FREQUENCY

Odom FMBB200-9 200kHz, 9° 200kHz, 9°, flange mount, M194 housing

Odom HM12-20-T198 12kHz, 20° 12kHz, 20°, hull mount, T198 housing

Odom SMBB200-9 200kHz, 9° 200kHz, 9°, stainless steel, stem mount,
SS510-2 housing

Odom SMBB200-3 200kHz, 3° 200kHz, 3°, stainless steel, stem mount,
SS549 housing

Odom SMSW200-4A 200kHz, 5° 200kHz, 5°, stem mount, shallow water,
SS538 housing

Odom TM24-20 24kHz, 20° 24kHz, 20°, tank mount, M192-2 housing

Odom TM33-19 33kHz, 19° 33kHz, 19°, tank mount, M192-6 housing

RESON TC2003 200kHz, 3° 200kHz, 3°

RESON TC2024 200kHz, 9.5° 200kHz, 9.5°, shallow water

Airmar SS510 200kHz 200kHz, 8° 200kHz, 8°, shallow water

Airmar SS538 200kHz 200kHz, 5° 200kHz, 5°, shallow water

Airmar SS549 200kHz 200kHz, 3° 200kHz, 3°, shallow water

Airmar M192-2 24kHz 24kHz, 24° 24kHz, 24°

Airmar M192-6 33kHz 33kHz, 19° 33kHz, 19°

Airmar M194 200kHz 200kHz, 8° 200kHz, 8°

Neptune T198 12kHz, 20° 12kHz, 20°, deep water, hull mount

DUAL FREQUENCY

Odom HM200/12-8/20 200kHz, 8° 12kHz, 20° 200/12kHz, 8/20°, hull mount, T197 housing

Odom HM210/12-8/20 210kHz, 7.5° 12kHz, 20° 210/12kHz, 7.5/20°, hull mount, T196 housing

Odom HMBB200/24-4/20 200kHz, 4° 24kHz, 20° 200/24kHz, 4/20°, hull mount, M175-2 housing

Odom OTS200/33-8/23 200kHz, 8° 33kHz, 23° 200/33kHz, 8/23°, over the side, M191
housing

Odom OTSBB200/24-4/20 200kHz, 4° 24kHz, 20° 200/24kHz, 4/20°, over the side, M42 housing

Odom OTSBB200/33-5/23 200kHz, 5° 33kHz, 23° 200/33kHz, 5/23°, over the side, M177-2
housing

Odom THP200/24-4/20 200kHz, 4° 24kHz, 20° 200/24kHz, 4/20°, tank, hull, pole, M108
housing

RESON TC2122 200kHz, 10° 33kHz, 22° 200/33kHz, 10/22°

RESON TC2178 200kHz, 9.5° 33kHz, 22° 200/33kHz, 9.5/22°, hydrodynamic, over the
side applications
