dibutuhkan.  SDMS  dapat  digunakan  secara  manual  maupun  komputerisasi  data

                  prosesing.

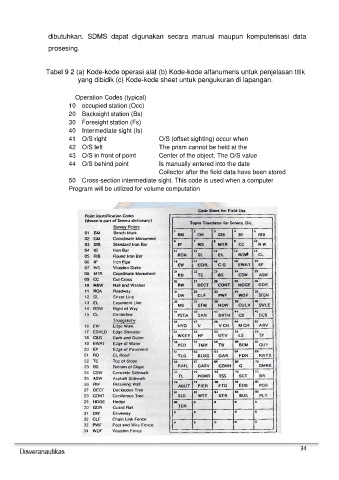

                 Tabel 9 2 (a) Kode-kode operasi alat (b) Kode-kode alfanumeris untuk penjelasan titik
                            yang dibidik (c) Kode-kode sheet untuk pengukuran di lapangan.


                           Operation Codes (typical)
                         10  occupied station (Occ)
                         20  Backsight station (Bs)
                         30  Foresight station (Fs)
                         40  Intermediate sight (Is)
                         41  O/S right                   O/S (offset sighting) occur when

                         42  O/S left                    The prism cannot be held at the

                         43  O/S in front of point       Center of the object. The O/S value
                         44  O/S behind point            Is manually entered into the date
                                                         Collector after the field data have been stored
                         50  Cross-section intermediate sight. This code is used when a computer
                         Program will be utilized for volume computation
